Low Axial Force Mechanical Seal Pump For Fuel Delivering / Hydraulic Engineering

Name: Low Axial Force Mechanical Seal Pump For Fuel Delivering Hydraulic Engineering
Brand: Paragon
Price: 1 USD

Brand Name : Paragon

Model Number : S1J

Certification : ISO9001

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 200pcs per month

Delivery Time : 30 working days after received your payment

Packaging Details : Packed in wooden case

Advantage : Pulp is stable

Direction of rotation : Clockwise

Application : Convey High Concentration Liquid

Structure : Screw Pump

Standard or Nonstandard : Standard

Front and back plates : Wear-resisting stainless steel

Contact Now

Low Axial Force Mechanical Seal Pump For Fuel Delivering / Hydraulic Engineering

Description:

Its transmission fluid flow is stable, no over flow, pulse and stirring shear grout phenomenon. Discharge pressure is nothing to do with speed; low flow can also keep the high excretion pressure. Flow speed is direct proportion with variable speed. Through speed exchanger institutions or high-speed motor can realize flow adjusting. Self-priming ability is high; the liquid flow direction is changed by the pump rotation, applicable for occasion of positive flush. It has the advantages of smooth operation, and vibration, low noise.

Features:

-Various types of pump seals to suit different working condition

-Easy to maintain

-Wear resistant metal or rubber wet end parts, long service life

-Grease or oil lubrication

-Discharge branch can be positioned at intervals of 45 degree

-Can be installed in multistage series

-Wide options for impeller

Applications:

It applies to deliver lubricating medium, such as oil ,bitumen, with the viscosity of 3-760cSt at temperature below 350°C

The pump’s working pressure range from 0.6Mpa to 2.5Mpa

Flow rate range from 0.6m3 /h to123 m3 /h.

They are mainly suited to fuel delivering, hydraulic engineering, shipping engineering, petrochemical and other industry fields.

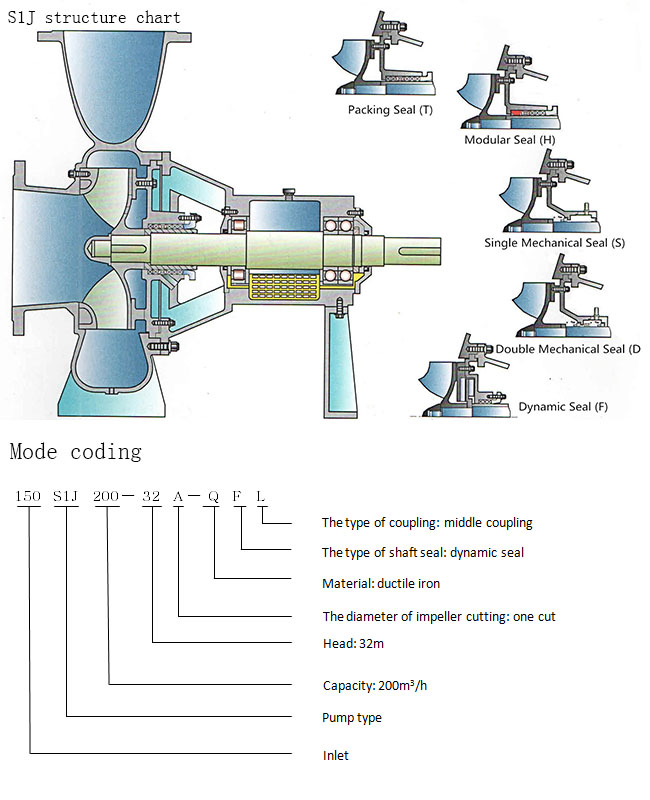

Standard seal: Mechanical seal, packing seal is available

Direction: CW seem from motor side
