Horizontal Cantilevered Paper Pulp Pump Single Stage With Packing / Impeller Sealing

Name: Horizontal Cantilevered Paper Pulp Pump Single Stage With Packing Impeller Sealing
Brand: Paragon
Price: 1 USD

Brand Name : Paragon

Model Number : PJ

Certification : ISO9001

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 200pcs per month

Delivery Time : 30 working days after received your payment

Packaging Details : Packed in wooden case

Application : City sanitation,Ship,Food

Pressure : Low Pressure

Impeller : Open type

Structure : Single-stage Pump

Driver : Electric motor

Color : As your requirements

Contact Now

Adjustable Wearable Plates Paper Pulp Pump With Stable Flow And Head

Product instruction:

The pump is our company's update product by digesting and assimilating foreign advanced technology, combined with the paper making industry and design of a renewal product, it accords with technological requirements of pulping, paper-making, chiefly used for transporting the wood pulp of concentration below 6%, at the same time, it also to transport the syrup, starch, chemical slurry, industrial sewage, etc.

Features:

1. Horizontal, cantilevered, centrifugal, single stage pump.

2. Long bearing life: The bearing assembly is with large diameter shaft and short overhang.

3. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.

4. Easily replaceable liners: Liners are bolted to the casing.

5. Wear resistant and anti abrasion wet parts: High chrome alloy and rubber etc. They are completely interchangeable with each other

6 Discharge direction can be positioned at intervals of 45 degree

7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.

8. Sealing type: pcking seal, impeller sealing and mechanical seal.

9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.

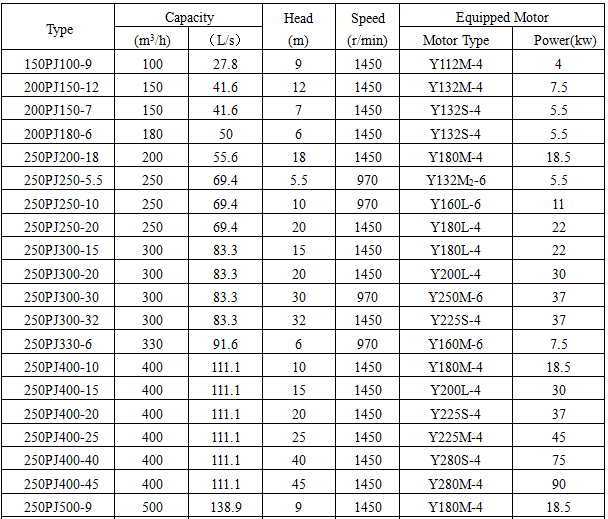

Some performance parameter of PJ:

Horizontal Cantilevered Paper Pulp Pump Single Stage With Packing / Impeller Sealing
